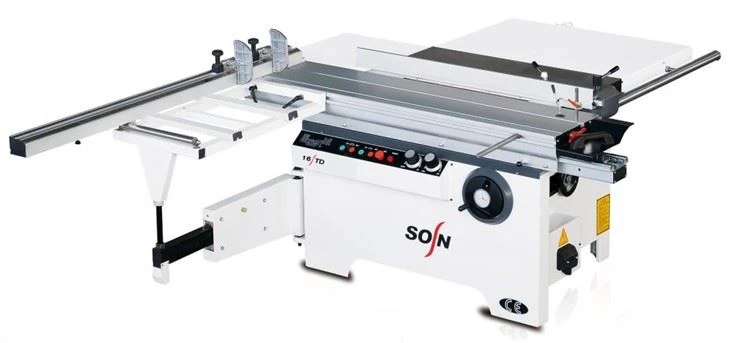

Panel saw machine features:
Advanced compact 1600mm model offered is basic on features, and heavy on quality and reliability. This saw is designed to be an economic solution for the small shop yet includes the same high-end construction features available on our most expensive models.
Technical info:
Worktable size | 1600*375mm |
Capacity of cross cut ruler | 1600mm |
Capacity of rip fence | 1250mm |
Sawing disc capacity | 300(250-400)mm |
Thickness of cutting (300mm) | 75mm |
Thickness of cutting of 300mm at 45 degree | 55mm |
Main saw disc speed | 4500/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 0-45 and 90 degree |
Main saw unit motor | 5.5kw |
Scoring cutting unit | 120mm |
Scoring disc speed | 7000-8000rpm/min |
Scoring unit spindle | 20mm |
Scoring saw unit motor | 1.1kw |
G.W. | 750kg |
Packing size | 1520*1150*1050mm 1750*480*320mm |
An overview of the panel saw machine key features.
-- Rip fence
The rip fence, precise and smooth running. Cutting width: 1,250 mm.
-- Manual tilt adjustment
Manually adjustable by handwheel, the tilting angle is shown on a scale. Tilting angle is from 0 -45°.
-- Manual height adjustment
Manually by handwheel.
-- Sawing unit system
Engine main saw power: 5.5 kW (7.5 HP)
Rotational speed: 4500/6000 rpm.
-- Scoring unit system
Separate scoring saw motor with 1.1 kW.
Rotational speed: 7000/8000 rpm.
-- Cutting height capacity
75mm at 90 degree using 300mm saw blade.
120mm can be selected if change to 400mm saw blade.
Panel saw machine for European agent:
Everyone wants to make a good cut. Our MJ61-16TD offers exceptional value for the money in a number of different ways.
The smallest saw in SOSN line of products meets all requirements in terms of features, power, reliability – and, especially price. It is the perfect introductory model for customers who put quality first.
Hold on it!
